Optimize
Optimization functions in PyCaret
tune_model
This function tunes the hyperparameters of the model. The output of this function is a scoring grid with cross-validated scores by fold. The best model is selected based on the metric defined in optimize parameter. Metrics evaluated during cross-validation can be accessed using the get_metrics function. Custom metrics can be added or removed using add_metric and remove_metric function.
Example
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(data = boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# tune model
13
tuned_dt = tune_model(dt)
Copied!

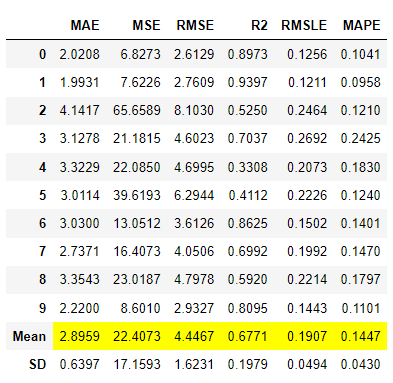

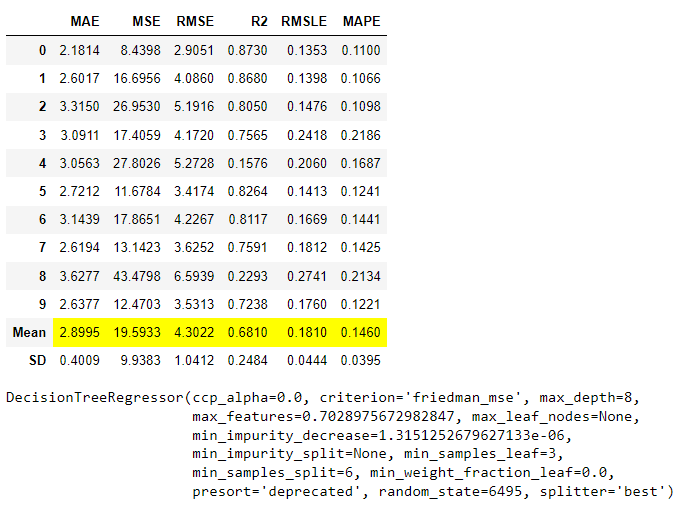

Output from tune_model(dt)
To compare the hyperparameters.
1
# default model
2
print(dt)
3
​
4
# tuned model
5
print(tuned_dt)
Copied!

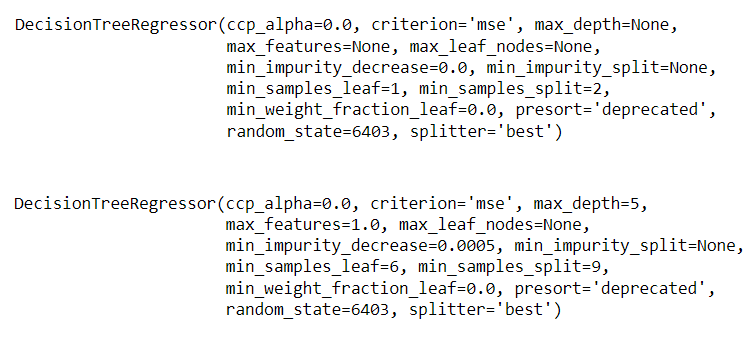

Model hyperparameters before and after tuning
Increasing the iteration
Hyperparameter tuning at the end of the day is an optimization that is constrained by the number of iterations, which eventually depends on how much time and resources you have available. The number of iterations is defined by n_iter. By default, it is set to 10.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(data = boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# tune model
13
tuned_dt = tune_model(dt, n_iter = 50)
Copied!

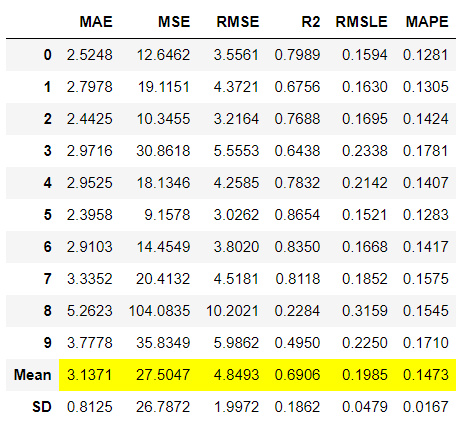

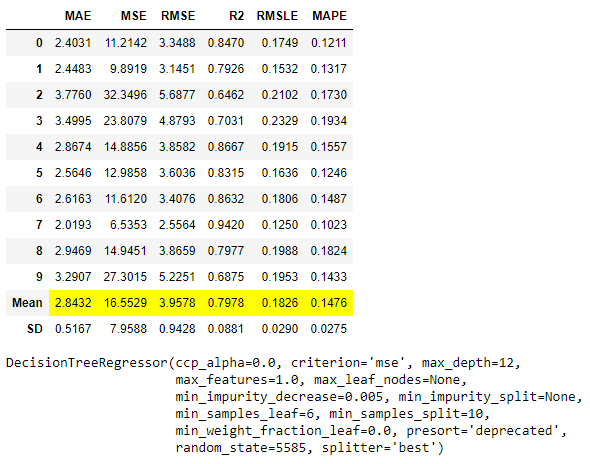

Output from tune_model(dt, n_iter = 50)

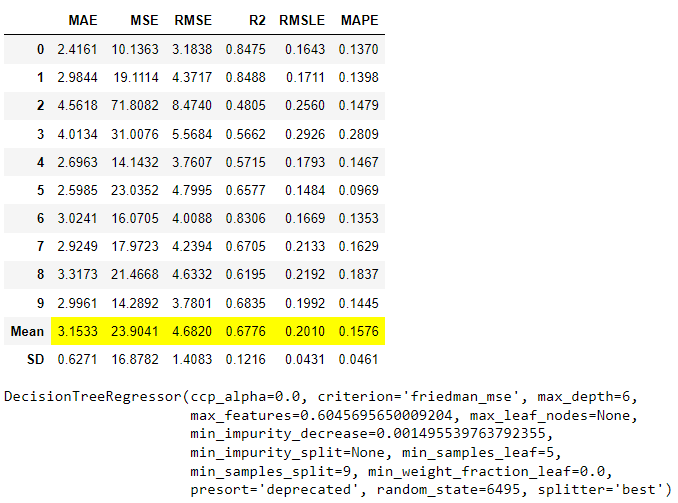

Comparison of 10 and 50 iterations
n_iter = 10
n_iter = 50
Choosing the metric
When you are tuning the hyperparameters of the model, you must know which metric to optimize for. That can be defined under optimize parameter. By default, it is set to Accuracy for classification experiments and R2 for regression.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(data = boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# tune model
13
tuned_dt = tune_model(dt, optimize = 'MAE')
Copied!

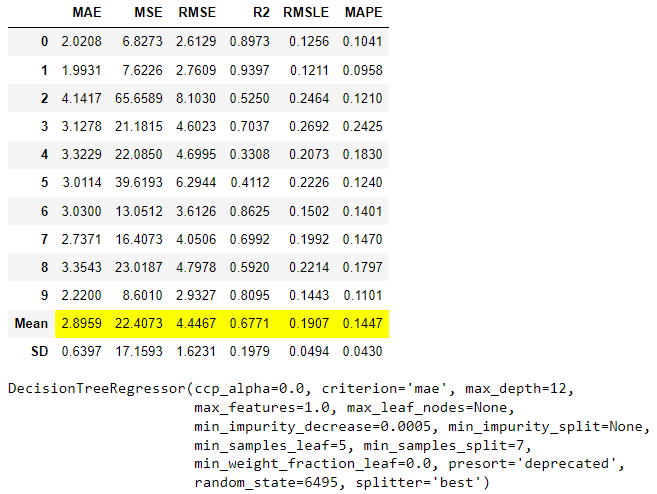

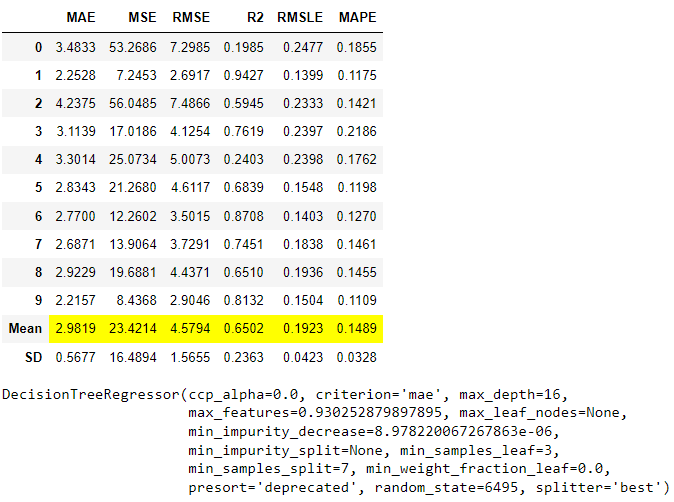

Output from tune_model(dt, optimize = 'MAE')
Passing custom grid
The tuning grid for hyperparameters is already defined by PyCaret for all the models in the library. However, if you wish you can define your own search space by passing a custom grid using custom_grid parameter.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# define search space
13
params = {"max_depth": np.random.randint(1, (len(boston.columns)*.85),20),
14
          "max_features": np.random.randint(1, len(boston.columns),20),
15
          "min_samples_leaf": [2,3,4,5,6]}
16

17
# tune model
18
tuned_dt = tune_model(dt, custom_grid = params)
Copied!

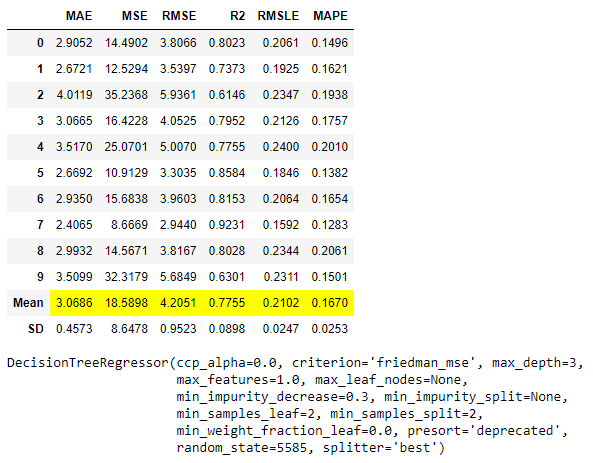

Output from tune_model(dt, custom_grid = params)
Changing the search algorithm
PyCaret integrates seamlessly with many different libraries for hyperparameter tuning. This gives you access to many different types of search algorithms including random, bayesian, optuna, TPE, and a few others. All of this just by changing a parameter. By default, PyCaret using RandomGridSearch from the sklearn and you can change that by using search_library and search_algorithm parameter in the tune_model function.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# tune model sklearn
13
tune_model(dt)
14
​
15
# tune model optuna
16
tune_model(dt, search_library = 'optuna')
17
​
18
# tune model scikit-optimize
19
tune_model(dt, search_library = 'scikit-optimize')
20
​
21
# tune model tune-sklearn
22
tune_model(dt, search_library = 'tune-sklearn', search_algorithm = 'hyperopt')
Copied!
scikit-learn
optuna
scikit-optimize
tune-sklearn
Access the tuner
By default PyCaret's tune_model function only returns the best model as selected by the tuner. Sometimes you may need access to the tuner object as it may contain important attributes, you can use return_tuner parameter.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# tune model and return tuner
13
tuned_model, tuner = tune_model(dt, return_tuner=True)
Copied!
Output from tune_model(dt, return_tuner=True)
1
type(tuned_model), type(tuner)
Copied!
Output from type(tuned_model), type(tuner)
1
print(tuner)
Copied!

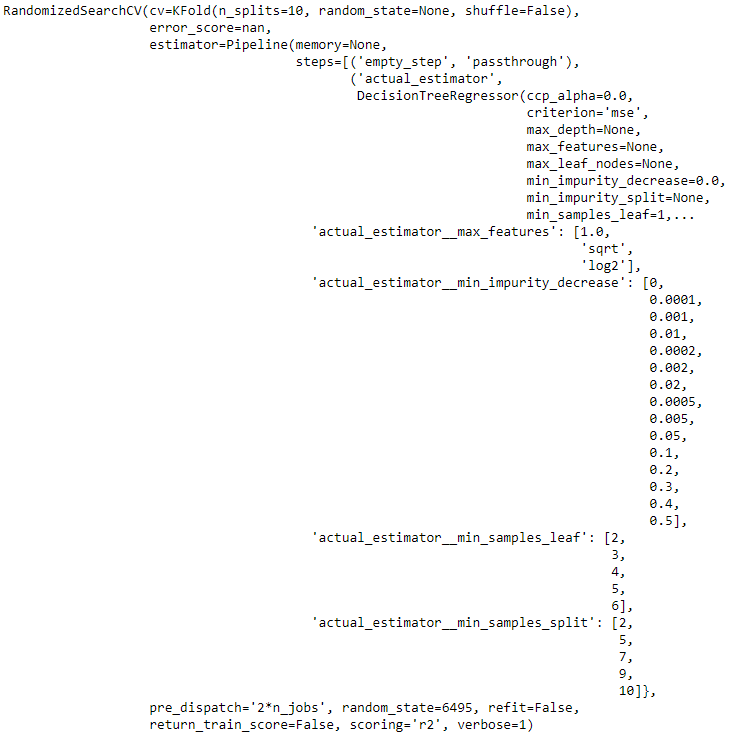

Output from print(tuner)
Automatically choose better
Often times the tune_model will not improve the model performance. In fact, it may end up making performance worst than the model with default hyperparameters. This may be problematic when you are not actively experimenting in the Notebook rather you have a python script that runs a workflow of create_model --> tune_model or compare_models --> tune_model. To overcome this issue, you can use choose_better. When set to True it will always return a better performing model meaning that if hyperparameter tuning doesn't improve the performance, it will return the input model.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# tune model
13
dt = tune_model(dt, choose_better = True)
Copied!
Output from tune_model(dt, choose_better = True)
NOTE: choose_better doesn't affect the scoring grid that is displayed on the screen. The scoring grid will always present the performance of the best model as selected by the tuner, regardless of the fact that output performance < input performance.
ensemble_model
This function ensembles a given estimator. The output of this function is a scoring grid with CV scores by fold. Metrics evaluated during CV can be accessed using the get_metrics function. Custom metrics can be added or removed using add_metric and remove_metric function.
Example
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# ensemble model
13
bagged_dt = ensemble_model(dt)
Copied!

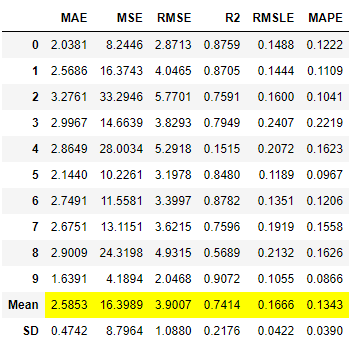

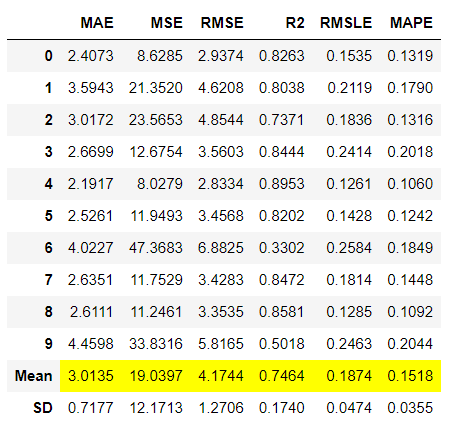

Output from ensemble_model(dt)
1
type(bagged_dt)
2
>>> sklearn.ensemble._bagging.BaggingRegressor
3
​
4
print(bagged_dt)
Copied!

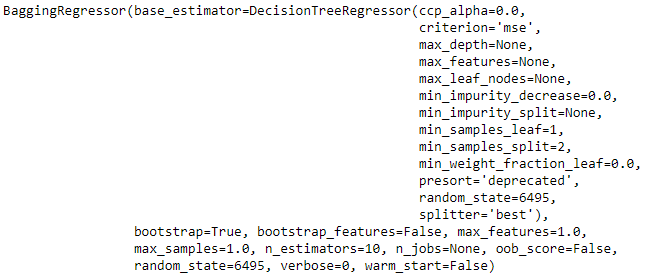

Output from print(bagged_dt)
Changing the fold param
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# ensemble model
13
bagged_dt = ensemble_model(dt, fold = 5)
Copied!

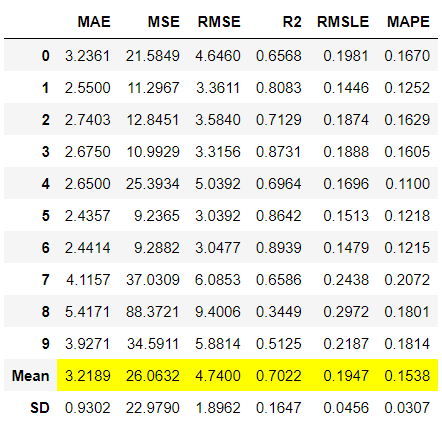

Output from ensemble_model(dt, fold = 5)
The model returned by this is the same as above, however, the performance evaluation is done using 5 fold cross-validation.
Method: Bagging
Bagging, also known as Bootstrap aggregating, is a machine learning ensemble meta-algorithm designed to improve the stability and accuracy of machine learning algorithms used in statistical classification and regression. It also reduces variance and helps to avoid overfitting. Although it is usually applied to decision tree methods, it can be used with any type of method. Bagging is a special case of the model averaging approach.
Method: Boosting
Boosting is an ensemble meta-algorithm for primarily reducing bias and variance in supervised learning. Boosting is in the family of machine learning algorithms that convert weak learners to strong ones. A weak learner is defined to be a classifier that is only slightly correlated with the true classification (it can label examples better than random guessing). In contrast, a strong learner is a classifier that is arbitrarily well-correlated with the true classification.
Choosing the method
There are two possible ways you can ensemble your machine learning model with ensemble_model. You can define this in the method parameter.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# ensemble model
13
boosted_dt = ensemble_model(dt, method = 'Boosting')
Copied!

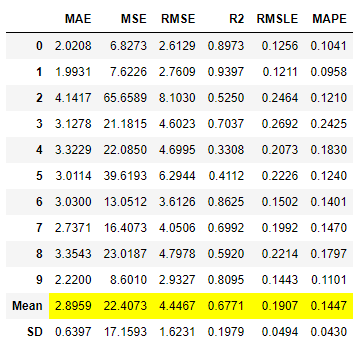

Output from ensemble_model(dt, method = 'Boosting')
1
type(boosted_dt)
2
>>> sklearn.ensemble._weight_boosting.AdaBoostRegressor
3
​
4
print(boosted_dt)
Copied!
Output from print(boosted_dt)
Increasing the estimators
By default, PyCaret uses 10 estimators for both Bagging or Boosting. You can increase that by changing n_estimators parameter.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
dt = create_model('dt')
11
​
12
# ensemble model
13
ensemble_model(dt, n_estimators = 100)
Copied!
Output from ensemble_model(dt, n_estimators = 100)
Automatically choose better
Often times the ensemble_model will not improve the model performance. In fact, it may end up making performance worst than the model with ensembling. This may be problematic when you are not actively experimenting in the Notebook rather you have a python script that runs a workflow of create_model --> ensemble_model or compare_models --> ensemble_model. To overcome this issue, you can use choose_better. When set to True it will always return a better performing model meaning that if hyperparameter tuning doesn't improve the performance, it will return the input model.
1
# load dataset
2
from pycaret.datasets import get_data
3
boston = get_data('boston')
4
​
5
# init setup
6
from pycaret.regression import *
7
reg1 = setup(boston, target = 'medv')
8
​
9
# train model
10
lr = create_model('lr')
11
​
12
# ensemble model
13
ensemble_model(lr, choose_better = True)
Copied!
Output from ensemble_model(lr, choose_better = True)
Notice that with choose_better = True the model returned from the ensemble_model is a simple LinearRegression instead of BaggedRegressor. This is because the performance of the model didn't improve after ensembling and hence input model is returned.
blend_models
This function trains a Soft Voting / Majority Rule classifier for select models passed in the estimator_list parameter. The output of this function is a scoring grid with CV scores by fold. Metrics evaluated during CV can be accessed using the get_metrics function. Custom metrics can be added or removed using add_metric and remove_metric function.
Example
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blender = blend_models([lr, dt, knn])
Copied!
Output from blend_models([lr, dt, knn])
1
type(blender)
2
>>> sklearn.ensemble._voting.VotingClassifier
3
​
4
print(blender)
Copied!
Output from print(blender)
Changing the fold param
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blender = blend_models([lr, dt, knn], fold = 5)
Copied!
Output from blend_models([lr, dt, knn], fold = 5)
The model returned by this is the same as above, however, the performance evaluation is done using 5 fold cross-validation.
Dynamic input estimators
You can also automatically generate the list of input estimators using the compare_models function. The benefit of this is that you do not have the change your script at all. Every time the top N models are used as an input list.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# blend models
10
blender = blend_models(compare_models(n_select = 3))
Copied!
Output from blend_models(compare_models(n_select = 3))
Notice here what happens. We passed compare_models(n_select = 3 as an input to blend_models. What happened internally is that the compare_models function got executed first and the top 3 models are then passed as an input to the blend_models function.
1
print(blender)
Copied!
Output from print(blender)
In this example, the top 3 models as evaluated by the compare_models are LogisticRegression, LinearDiscriminantAnalysis, and RandomForestClassifier.
Changing the method
When method = 'soft', it predicts the class label based on the argmax of the sums of the predicted probabilities, which is recommended for an ensemble of well-calibrated classifiers.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blender_soft = blend_models([lr,dt,knn], method = 'soft')
Copied!
Output from blend_models([lr,dt,knn], method = 'soft')
When the method = 'hard' , it uses the predictions (hard labels) from input models instead of probabilities.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blender_hard = blend_models([lr,dt,knn], method = 'hard')
Copied!
Output from blend_models([lr,dt,knn], method = 'hard')
The default method is set to auto which means it will try to use soft method and fall back to hard if the former is not supported, this may happen when one of your input models does not support predict_proba attribute.
NOTE: Method parameter is only available in Classification module.
Changing the weights
By default, all the input models are given equal weight when blending them but you can explicitly pass the weights to be given to each input model.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blender_weighted = blend_models([lr,dt,knn], weights = [0.5,0.2,0.3])
Copied!
Output from blend_models([lr,dt,knn], weights = [0.5,0.2,0.3])
You can also tune the weights of the blender using the tune_model.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blender_weighted = blend_models([lr,dt,knn], weights = [0.5,0.2,0.3])
16
​
17
# tune blender
18
tuned_blender = tune_model(blender_weighted)
Copied!
Output from tune_model(blender_weighted)
1
print(tuned_blender)
Copied!
Output from print(tuned_blender)
Automatically choose better
Often times the blend_models will not improve the model performance. In fact, it may end up making performance worst than the model with blending. This may be problematic when you are not actively experimenting in the Notebook rather you have a python script that runs a workflow of compare_models --> blend_models. To overcome this issue, you can use choose_better. When set to True it will always return a better performing model meaning that if blending the models doesn't improve the performance, it will return the single best performing input model.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# blend models
15
blend_models([lr,dt,knn], choose_better = True)
Copied!
Output from blend_models([lr,dt,knn], choose_better = True)
Notice that because choose_better=True the final model returned by this function is LogisticRegression instead of VotingClassifier because the performance of Logistic Regression was most optimized out of all the given input models plus the blender.
stack_models
This function trains a meta-model over select estimators passed in the estimator_list parameter. The output of this function is a scoring grid with CV scores by fold. Metrics evaluated during CV can be accessed using the get_metrics function. Custom metrics can be added or removed using add_metric and remove_metric function.
Example
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# stack models
15
stacker = stack_models([lr, dt, knn])
Copied!
Output from stack_models([lr, dt, knn])
Changing the fold param
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# stack models
15
stacker = stack_models([lr, dt, knn], fold = 5)
Copied!
Output from stack_models([lr, dt, knn], fold = 5)
The model returned by this is the same as above, however, the performance evaluation is done using 5 fold cross-validation.
Dynamic input estimators
You can also automatically generate the list of input estimators using the compare_models function. The benefit of this is that you do not have the change your script at all. Every time the top N models are used as an input list.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# stack models
10
stacker = stack_models(compare_models(n_select = 3))
Copied!
Output from stack_models(compare_models(n_select = 3))
Notice here what happens. We passed compare_models(n_select = 3 as an input to stack_models. What happened internally is that the compare_models function got executed first and the top 3 models are then passed as an input to the stack_models function.
1
print(stacker)
Copied!
Output from print(stacker)
​
In this example, the top 3 models as evaluated by the compare_models are LogisticRegression, RandomForestClassifier, and LGBMClassifier.
Changing the method
There are a few different methods you can explicitly choose for stacking or pass auto to be automatically determined. When set to auto, it will invoke, for each model, predict_proba, decision_function or predict function in that order. Alternatively, you can define the method explicitly.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# stack models
15
stacker = stack_models([lr, dt, knn], method = 'predict')
Copied!
Output from stack_models([lr, dt, knn], method = 'predict')
Changing the meta-model
When no meta_model is passed explicitly, LogisticRegression is used for Classification experiments and LinearRegression is used for Regression experiments. You can also pass a specific model to be used as a meta-model.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# train meta-model
15
lightgbm = create_model('lightgbm')
16
​
17
# stack models
18
stacker = stack_models([lr, dt, knn], meta_model = lightgbm)
Copied!
Output from stack_models([lr, dt, knn], meta_model = lightgbm)
1
print(stacker.final_estimator_)
Copied!
Output from print(stacker.final_estimator_)
Restacking
There are two ways you can stack models. (i) only the predictions of input models will be used as training data for meta-model, (ii) predictions as well as the original training data is used for training meta-model.
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a few models
10
lr = create_model('lr')
11
dt = create_model('dt')
12
knn = create_model('knn')
13
​
14
# stack models
15
stacker = stack_models([lr, dt, knn], restack = False)
Copied!
Output from stack_models([lr, dt, knn], restack = False)
optimize_threshold
This function optimizes the probability threshold for a trained model. It iterates over performance metrics at different probability_threshold with a step size defined in grid_interval parameter. This function will display a plot of the performance metrics at each probability threshold and returns the best model based on the metric defined under optimize parameter.
Example
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a model
10
knn = create_model('knn')
11
​
12
# optimize threshold
13
optimized_knn = optimize_threshold(knn)
Copied!
Output from optimize_threshold(knn)
1
print(optimized_knn)
Copied!
Output from print(optimized_knn)
calibrate_model
This function calibrates the probability of a given model using isotonic or logistic regression. The output of this function is a scoring grid with CV scores by fold. Metrics evaluated during CV can be accessed using the get_metrics function. Custom metrics can be added or removed using add_metric and remove_metric function.
Example
1
# load dataset
2
from pycaret.datasets import get_data
3
diabetes = get_data('diabetes')
4
​
5
# init setup
6
from pycaret.classification import *
7
clf1 = setup(data = diabetes, target = 'Class variable')
8
​
9
# train a model
10
dt = create_model('dt')
11
​
12
# calibrate model
13
calibrated_dt = calibrate_model(dt)
Copied!
Output from calibrate_model(dt)
1
print(calibrated_dt)
Copied!
Output from print(calibrated_dt)
Before and after calibration
Before Calibration
After Calibration
Train
Analyze
Last modified 3mo ago
